Features
Composed of 100% synthetic fiber raw materials.

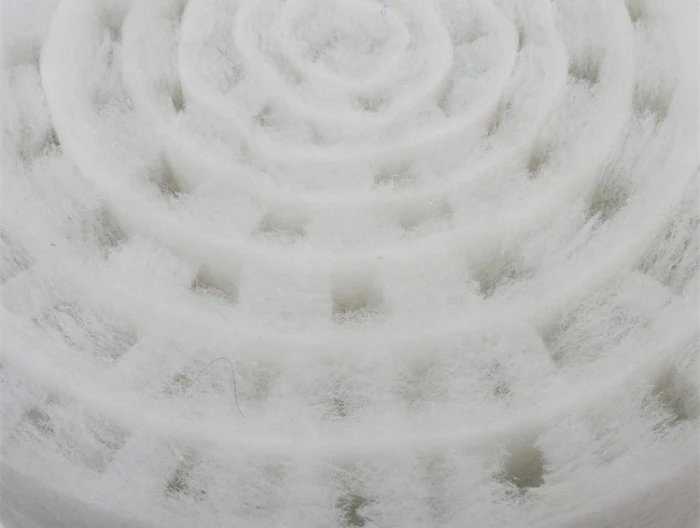

The diamond shaped three-dimensional material structure prevents enhance the filtering, so that increase the adsorbing ability of paint mist.
The high-density fiber layer at the bottom also enhances the efficiency of paint mist separation, and even small paint mist can be effectively intercepted.

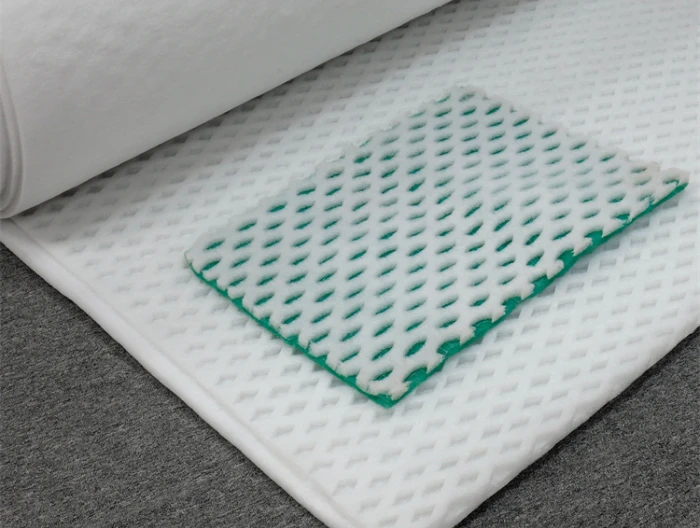

The built-in grid pad ensures the structural stability and fracture resistance of the material. Make sure the service life several times that of glass fiber paint mist, which can extend the service life of the downstream filter stage to 300%.
Application
Suitable for paint mist filter media in paint spray rooms and other air filtration links. It can intercept paint residues produced by high-solid paint, powder paint, water-based paint, multi-component paint, colorant and adhesive. It can also be made into a filter or used directly.
Dimension and Specification
| Weight | 400G |
| Thickness | 30±2mm |
| Max. Airflow | 2160m3/h |
| InitiaI Resistance | 15pa |
| Final Resistance | 200pa |
| Eficiency | 99.90% |
| NominalVelocit | 0.6m/s |
| Dust Holding Capacity | 514g/m2 |
| Max Temp | 100°C |
