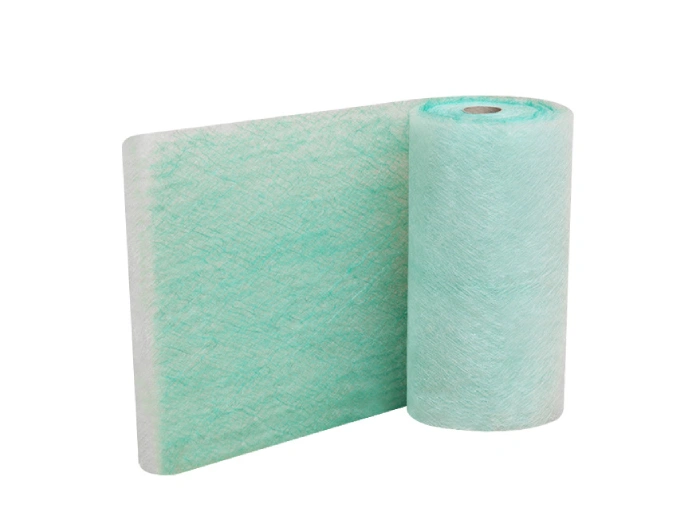

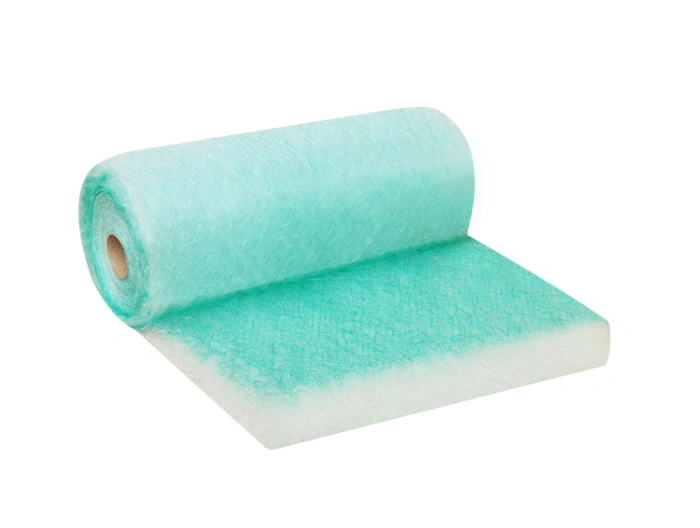

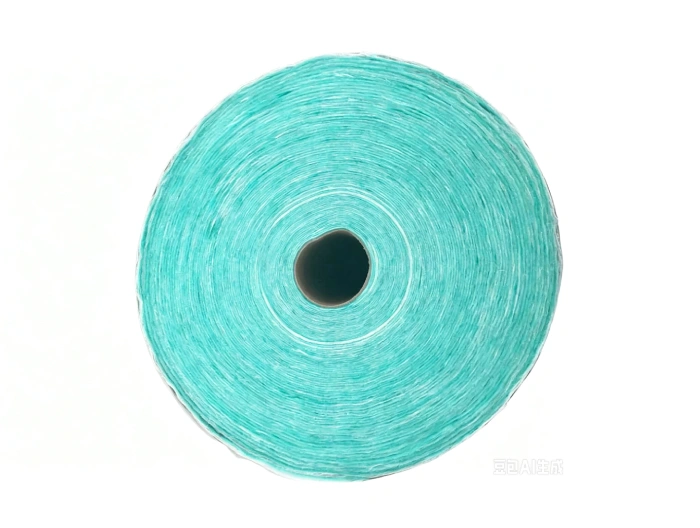

G3G4 Fiberglass Floor Vent Filter Paint Stop Media Roll

The G3G4 Fiberglass Floor Vent Filter (Paint Stop Media Roll) is made from high-quality finespun green/white fiberglass, evenly graded in density to effectively absorb and hold oil mist and dust, with friction-generated static electricity that efficiently traps overspray particles for cleaner exhaust and internal air circulation. Available in four models (LH-200G to LH-320G, 200-320g, 30-100mm thick, filtration grades G2-G4), with 80.5% efficiency, initial/final resistance from 10-20pa to 130-200pa, nominal velocity of 2.5m/s, dust holding capacity up to 470g/m², max airflow up to 5680m³/h, heat resistance to 170°C, and F-1/UL900 Class 2 flame resistance, it’s an ecological filter media widely used in automotive/furniture paint spray booths and coating production lines to ensure high arrestance and even air pressure.

FREE QUOTE NOW Get Instant Quote

Leave a Message

Material

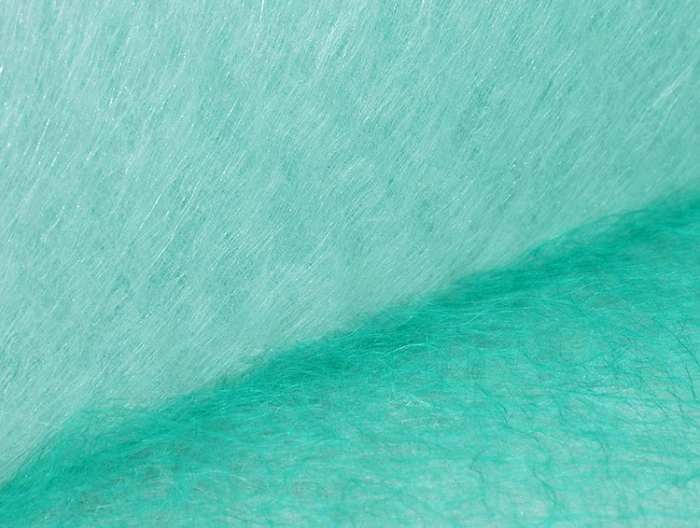

Fiberglass filter media is made of high-quality, environmentally friendly fine-spun fiberglass in green and white colors. By sorting the fiberglass density evenly and in an orderly manner, the media can completely absorb and store oil mist and dust with better structure.

The friction between the glass fiber and the pressurized air will produce static electricity, absorbing excess spray paint particles efficiently, which can make the exhaust air more environmentally friendly, and the air is cleaner during the internal circulation.

Application

It’s suitable for automotive/furniture paint spray booths, coating production lines, etc., widely used for filtration with high arrestance and efficiency in absorbing extra particles during the course of painting, making air pressure more even. It is a typical ecological filter media.

Dimension and Specification

Mode	LH-200G	LH-250G	LH-280C	LH-320G
Color	Green/White	Green/White	Green/White	Green/White
Weight	200G	250G	280G	320G
Thickness	30±5mm	60±5mm	80±5mm	100±5mm
Max. Airflow	5680m3/h	4680m3/h	5400m3/h	5400m3/h
Initial Resistance	10pa	12pa	15pa	20pa
Final Resistance	130pa	150pa	180pa	200pa
Efficiency	80.50%	80.50%	80.50%	80.50%
Nominal Velocity	2.50m/s	2.50m/s	2.50m/s	2.50m/s
Dust Holding Capacity	360g/m2	385g/m2	400g/m2	470g/m2
Max Temp	170°C	170°C	170°C	170°C
Filtering Grade	G2	G3	G3	G4
Flame Resistance	F-1DIN53438 UL900-Class2	F-1DIN53438 UL900-Class2	F-1DIN53438 UL900-Class2	F-1DIN53438 UL900-Class2
